PROJECT FACTS COAL/BIOMASS STATION Station Output: 585 MW Shaft Diameter (Pre-Machining): 530 mm Shaft Diameter (Post-Repair): 528.5mm (-1.5mm) Finished surface roughness: 0.2 Ra Repair Time: 4 Days STEAM TURBINE REPAIRS CONSISTED OF: Inspection of the damaged shaft Installation of machining …
Learn More Download Now

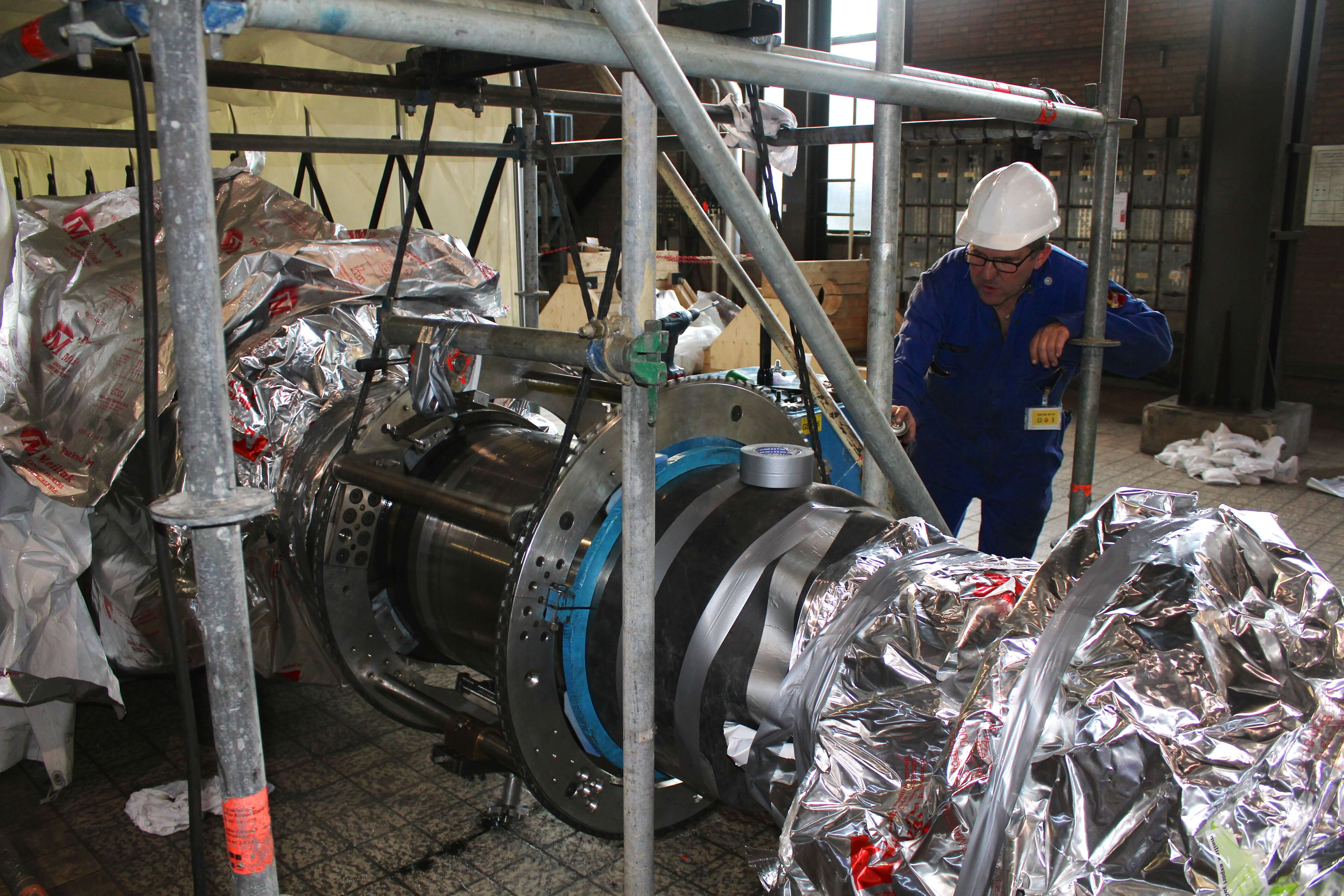

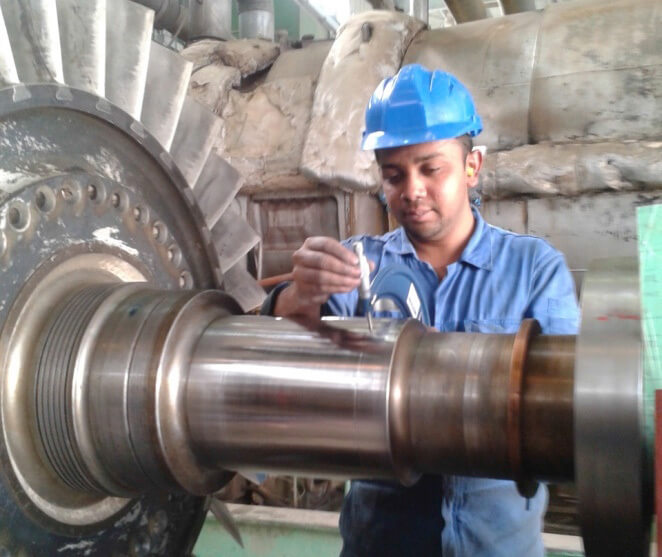

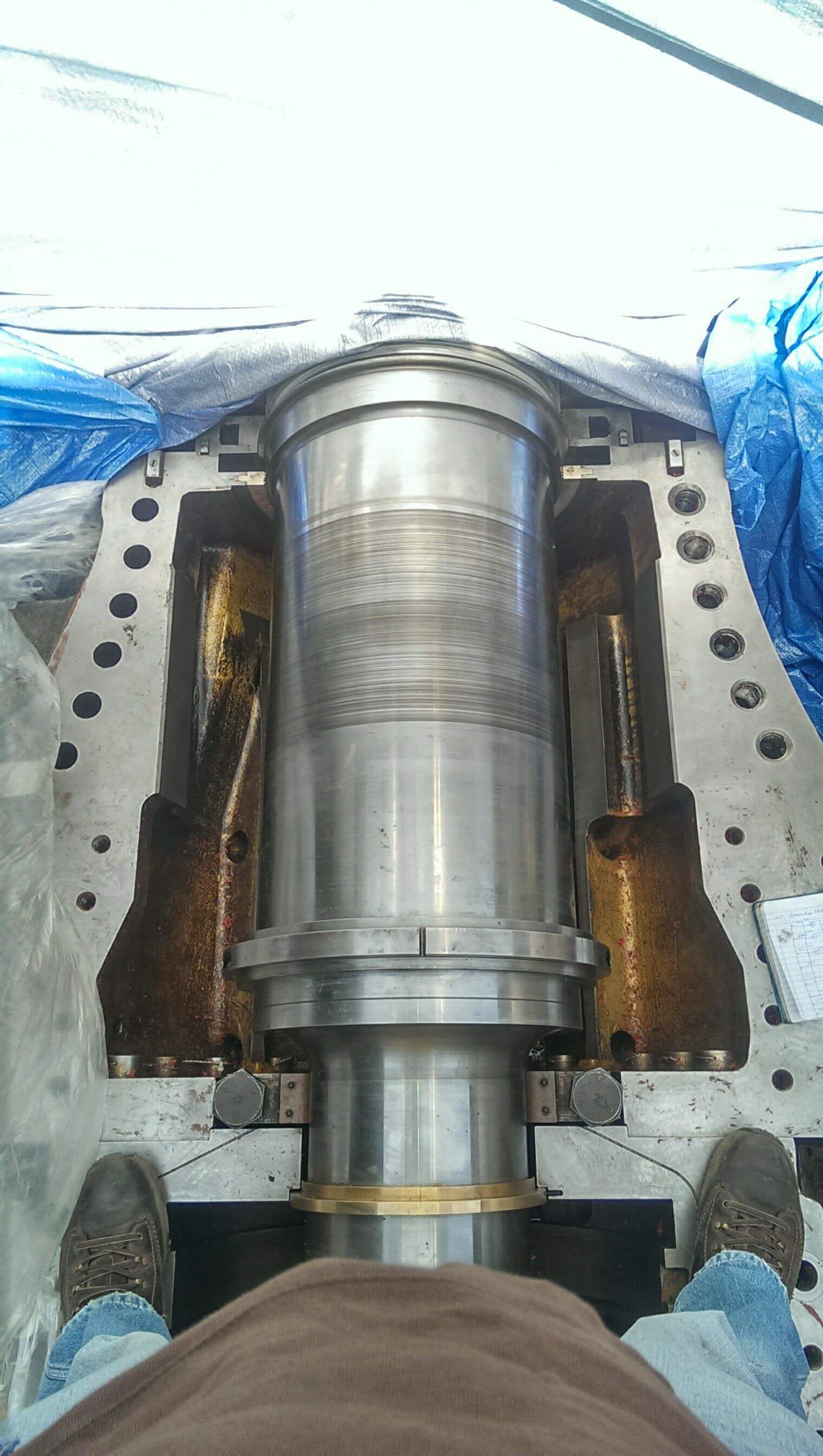

TURBINE SHAFT INSPECTION Once SEC had disassembled the engine and placed the rotor in the stand, Goltens inspected the shaft damage on the compressor and exhaust bearing journals. Goltens visually inspected and calibrated the shaft, performed MPI crack tests and …
Learn More Download Now
OBSERVATIONS DURING INSPECTION Bearing and sealing area observed to have significant surface scoring Max hardness levels of 334 HB (some areas could not be measured due to deep scoring marks) Magna Flux testing revealed no surface cracks PROJECT FACTS SEC …
Learn More Download Now

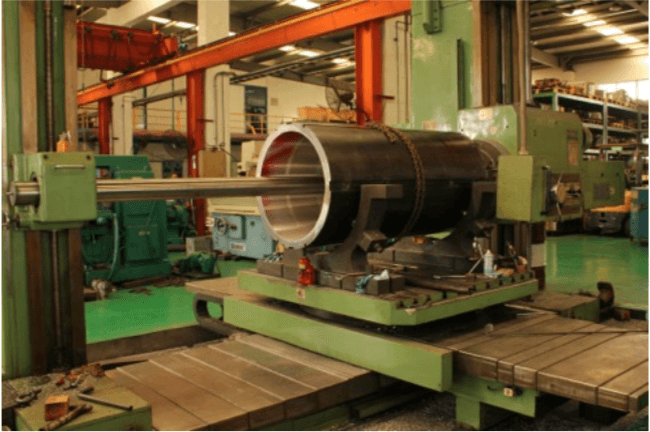

PROJECT FACTS NORDIC FIGHTER Vessel type: Crude/Oil Products Tanker Stern Tube Dimensions: OD: 636.00mm x L: 1,200mm Tonnage: 153,328 DWT Main Engine: MAN B&W 6S70MC STERN TUBE REBABBITTING SCOPE Incoming inspection of AFT stern tube bearing before and after removal …
Learn More Download Now
PROJECT FACTS LPG CARRIER MAIN ENGINE Work Location: Houston, Texas Engine Make/Model: Hitachi Zosen B&W 6S50MC Engine Output: 6845Kw at 115RPM B&W 6S59MC MAIN ENGINE REPAIR SCOPE Inspection and overhaul of all six liner and piston assemblies Inspection cleaning and …
Learn More Download Now
PROJECT FACTS MV VTC OCEAN Engine Type: Yanmar 6N18-UN Output: 450 KW Vessel Type: Bulk Carrier YANMAR DIESEL REPAIR WORK SCOPE Complete cleaning and inspection of engine block Complete cleaning and inspection of crankshaft at workshop Repaired the badly damaged …
Learn More Download Now

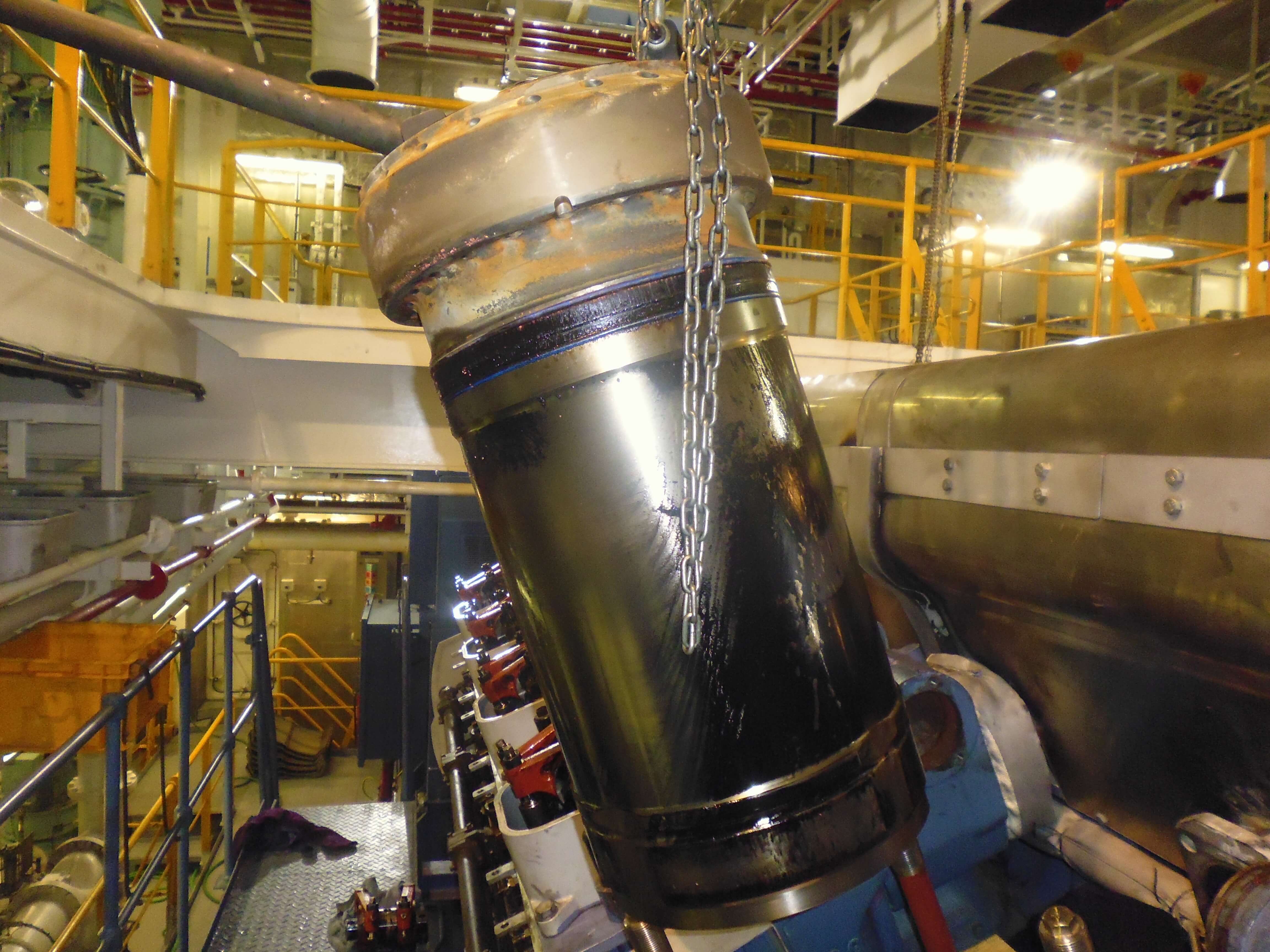

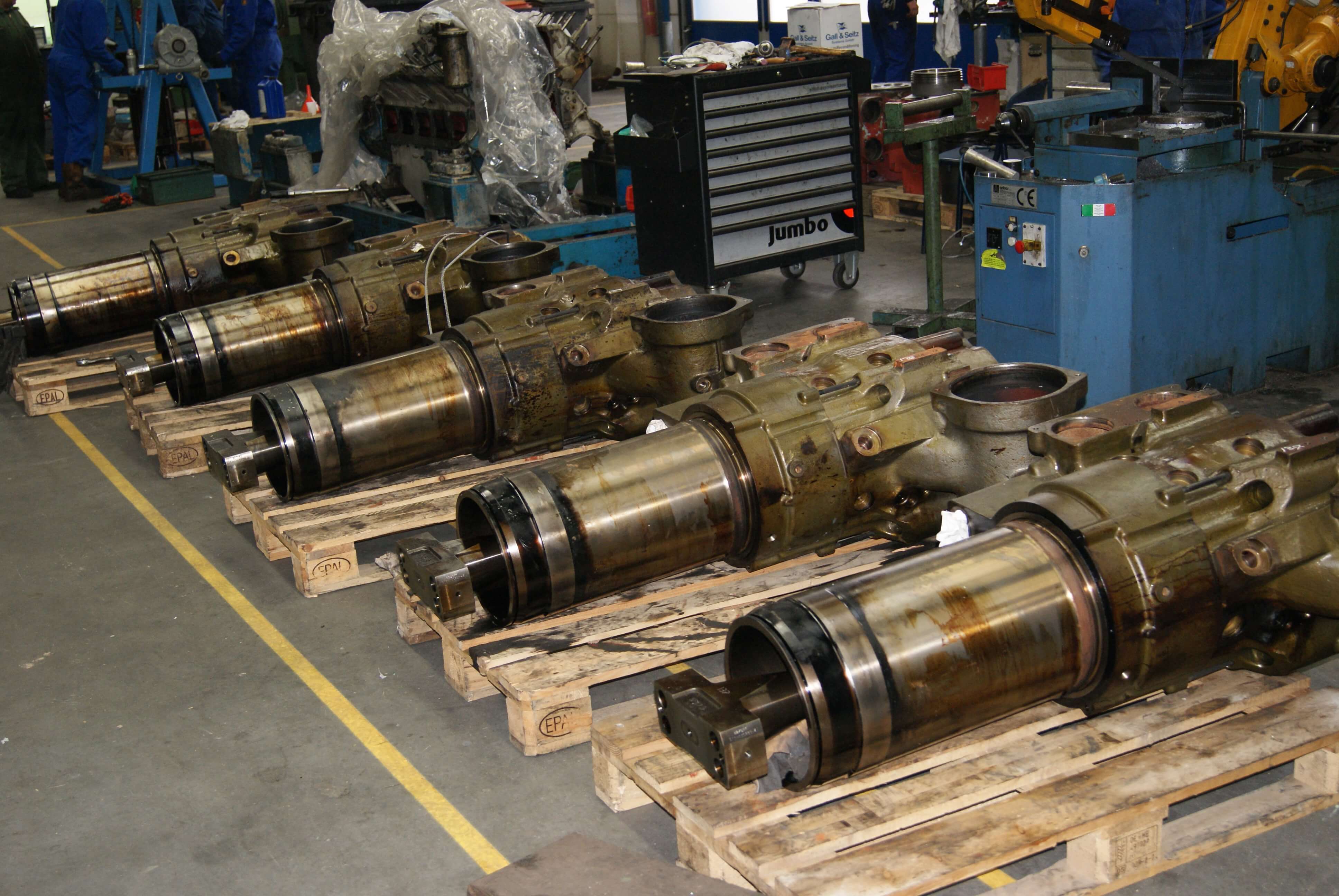

Auxiliary engine overhaul process Exhaust and inlet valves and seats were ground/machined within maker’s limits and all rejected valves and seats were replaced. All fuel injectors were overhauled in Goltens’ fuel workshop and rejected items were replaced. All indicator cocks …
Learn More Download Now
PROJECT FACTS GUAM POWERPLANT Engine Maker: Doosan Korea Engine Model: MAN B&W 12K80MC Main Bearing Pocket Diameter: 992mm REPAIRS Assessment and laser alignment check of the all main bearing pockets. Correction of the main bearing pocket horizontal contact landings in …
Learn More Download Now

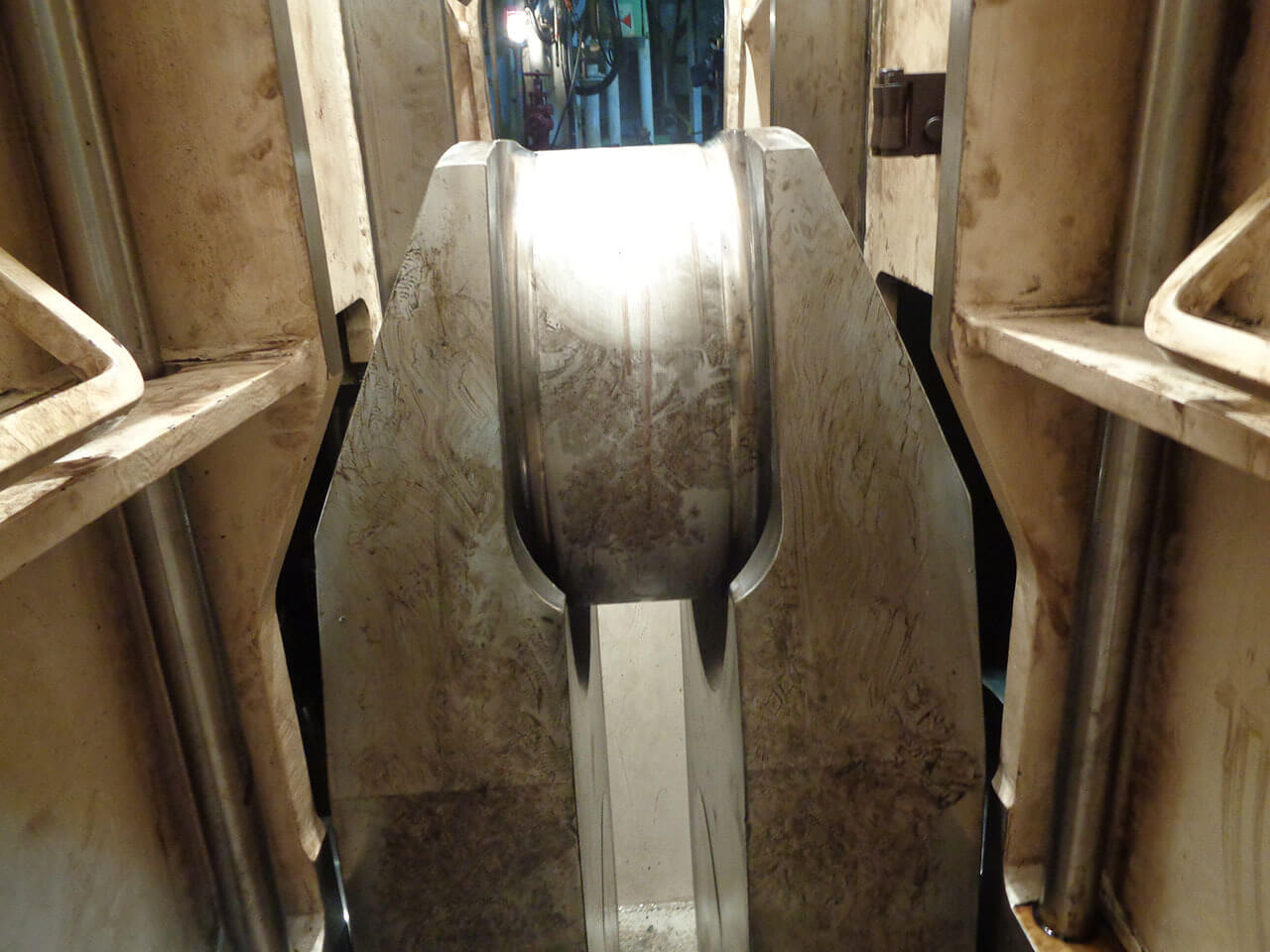

Demonstration of annealing process Mitsubishi invited Goltens to demonstrate its annealing process on a crankshaft that had been intentionally hardened for the demonstration in its factory in Yokohama, Japan. Goltens technicians traveled to the factory and, following its GL-approved process, …
Learn More Download Now
PROJECT FACTS METAL STITCHING Engine Model: MaK 12M282 Vessel Type: FPSO Engine Output: 2,400KW RPM: 1,000 RPM METAL STITCHING REPAIR Full inspection of the damaged block Removal of damaged portions of the block – leaving a clean surface to stitch …
Learn More Download Now
PROJECT FACTS Engine Make/Model: Mitsubishi 6UEC85LS-II Engine Output: 22,432 kW Original Crankpin Diameter: 950.00 mm Distance between Webs: 335.00 mm Finished Crankpin Diameter: 940.00 mm DAMAGED JOURNAL REPAIRS Hardness check and crack test via Magnaflux on No.1 crankpin journal Machining …
Learn More Download Now
PROJECT FACTS MAN B&W V9V40/54 Crankpin Diameter: 320 mm Pre Annealing Hardness: 630 Brinell Post Annealing Hardness: 320 Brinell Finished Crankpin Diameter: 316 mm (-4.0mm) CRANKSHAFT ANNEALING AND MACHINING REPAIRS Machining of new fillet radii Magnaflux crack testing and Hardness …
Learn More Download Now
PROJECT FACTS HAI FENG 618 Vessel type: Refrigerated Cargo Ship Tonnage: 7,934 DWT Main Engine: Mitsubishi 6UEC52LA Power: 7,061 KW IN-PLACE MACHINING AND DIESEL REPAIR SCOPE Machining Cylinder No. 1 FWD & AFT guide rail port side to -2.50mm undersize …
Learn More Download Now
IN-SITU MACHINING PROJECT FACTS Engine: Vasa 18V32 Engine Output: 5,800kW RPM: 720 RPM Original Crankpin Diameter: 269.00 mm Finished Crankpin Diameter: 267.00 mm Distance between Webs: 210.00mm WARTSILA CRANKSHAFT REPAIRS Machining new fillet radii Machining and superpolishing crankpin journal …
Learn More Download Now
PROJECT FACTS M/E CYLINDER LANDINGS Vessel: M/V HONG XIANG JUN Engine: PIELSTICK 12PC2-5V, 4 units×5360KW Tonnage: 3943 DWT Dredge Capacity: 4,500m3/h REPAIRS Flatness checking of No. 4, 5 and 6 cylinder covers with laser equipment RESULTS Goltens technicians completed this …
Learn More Download Now
PROJECT FACTS Sulzer 8 ZAL 40S Engine Output: 5760kW RPM: 514 RPM Original Crankpin Diameter: 350.00 mm Distance between Webs: 180.00mm Finished Crankpin Diameter CP3: 342.00 mm Finished Crankpin Diameter CP1: 347.00 mm SULZER 8ZAL 40S REPAIRS Machined new fillet …
Learn More Download Now
PROJECT FACTS MV QUEEN OF BURNABY Engine Type: Mirrlees National Engine Model: KVSS M16 V-Type Number of Journals: 8 Original Diameter: 266.70mm Finished Diameter: 265.18mm IN-PLACE MACHINING CONSISTED OF Performed Magnaflux crack test and hardness tests on all crankpins Performed …
Learn More Download Now
The vessel owners consulted the engine maker and presented the method for proposed repair. After consultation with the makers, the vessel owners were informed by the makers that this type of repair was “not possible In-situ”. Despite this adverse opinion, …
Learn More Download Now
PROJECT FACTS Engine Make/Model: MAN B&W 9K80MC-S Engine Output: 41,670 kW (103 Rpm) Crankpin Dia. Pre machining: 896.00mm Crankpin Dia. Post machining: 891.00mm REPAIRS TO CRANKPINS Full NDT inspection (Magnaflux and Hardness) Machining of new fillet radii Machining of crankpin …
Learn More Download Now
PROJECT FACTS Wartsila 6RT-FLEX 50B Weight: 55tons Crankshaft Length: 7560 mm Throw: 2850 mm Journal Diameter: 600 mm Crankpin Diameter: 600 mm REPAIRS Assessment of fillet radii (which are normally out of line due to the shaft manufacturing process) Grinding …
Learn More Download Now
PROJECT FACTS Wartsila 6RT-FLEX 50B Weight: 55 tons Crankshaft Length: 7560 mm Throw: 2850 mm Journal Diameter: 600 mm Crankpin Diameter: 600 mm REPAIRS Assessment of fillet radii (which were out of line due to the shaft manufacturing process) Machining …
Learn More Download Now
THE DECISION Goltens machined the crankshaft to -4mm and to evaluate the condition of the shaft. It was determined that the hard spots did not lessen – in fact, they became worse. All of the surface cracks were removed, with …
Learn More Download Now
The customer decided to cut another -2.00mm to see if the hard area would get smaller and the hardness values would get lower. At diameter 346.00mm the hardness values and area were still out of the engine maker’s specifications. Goltens …
Learn More Download Now
IN-SITU ANNEALING PROJECT FACTS Caribe Mariner Ship Type: Container Ship Engine Make: MaK 8M32 Engine Output Mcr: 3,380kW/4,595HP (600RPM) Crankpin Diameter (Original): 280.00 mm Crankpin Diameter (Finished): 278.00mm Max Hardness pre-Annealing: 650HB Max Hardness post-Annealing: 308HB CRANKSHAFT AND JOURNAL REPAIRS …
Learn More Download Now
PROJECT FACTS French Guyana Powerplant Engine Make/Model: Pielstick PC2.5 18V Crankpin Dia. Pre machining: 315mm Crankpin Dia. Post machining: 312mm Max Hardness before Annealing: 647hB Max Hardness after Annealing: 325hB REPAIRS Full NDT inspection (Magnaflux and Hardness) Machining of crankpin …
Learn More Download Now
