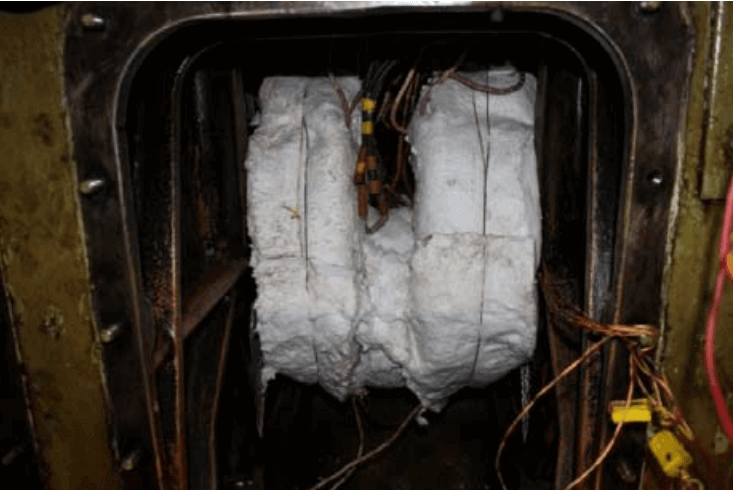

PROJECT FACTS MAN B&W V9V40/54 Crankpin Diameter: 320 mm Pre Annealing Hardness: 630 Brinell Post Annealing Hardness: 320 Brinell Finished Crankpin Diameter: 316 mm (-4.0mm) CRANKSHAFT ANNEALING AND MACHINING REPAIRS Machining of new fillet radii Magnaflux crack testing and Hardness …
Learn More Download Now

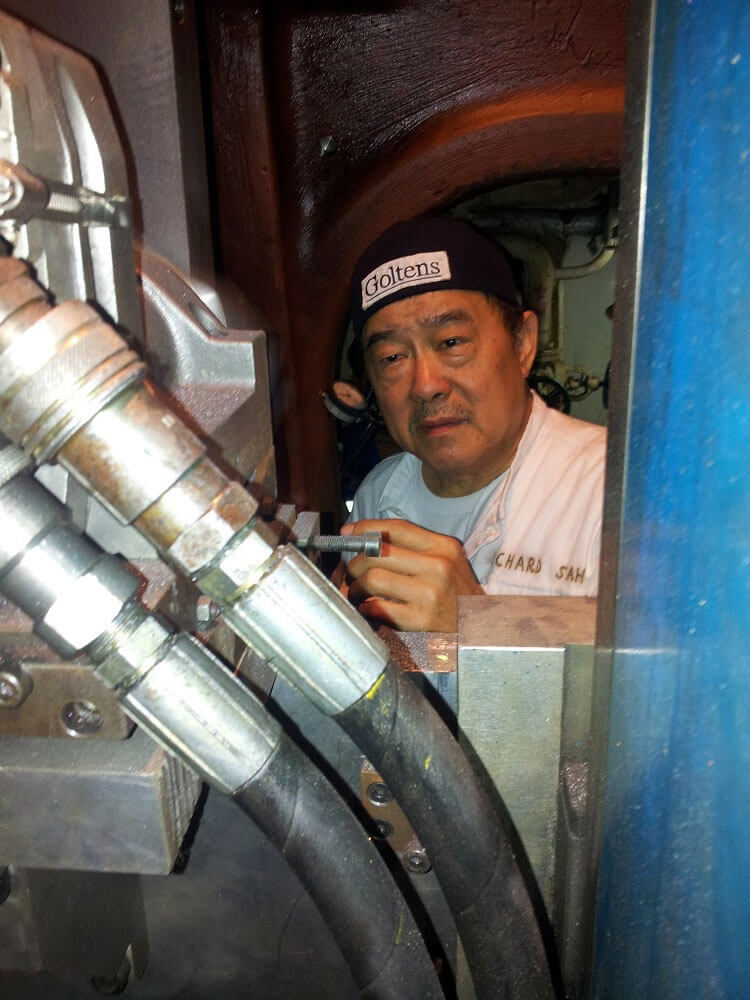

PROJECT FACTS HAI FENG 618 Vessel type: Refrigerated Cargo Ship Tonnage: 7,934 DWT Main Engine: Mitsubishi 6UEC52LA Power: 7,061 KW IN-PLACE MACHINING AND DIESEL REPAIR SCOPE Machining Cylinder No. 1 FWD & AFT guide rail port side to -2.50mm undersize …
Learn More Download Now

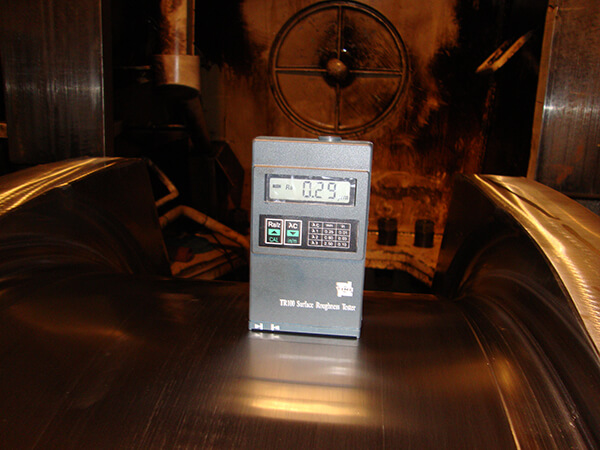

IN-SITU MACHINING PROJECT FACTS Engine: Vasa 18V32 Engine Output: 5,800kW RPM: 720 RPM Original Crankpin Diameter: 269.00 mm Finished Crankpin Diameter: 267.00 mm Distance between Webs: 210.00mm WARTSILA CRANKSHAFT REPAIRS Machining new fillet radii Machining and superpolishing crankpin journal …
Learn More Download Now
PROJECT FACTS M/E CYLINDER LANDINGS Vessel: M/V HONG XIANG JUN Engine: PIELSTICK 12PC2-5V, 4 units×5360KW Tonnage: 3943 DWT Dredge Capacity: 4,500m3/h REPAIRS Flatness checking of No. 4, 5 and 6 cylinder covers with laser equipment RESULTS Goltens technicians completed this …
Learn More Download Now
PROJECT FACTS Sulzer 8 ZAL 40S Engine Output: 5760kW RPM: 514 RPM Original Crankpin Diameter: 350.00 mm Distance between Webs: 180.00mm Finished Crankpin Diameter CP3: 342.00 mm Finished Crankpin Diameter CP1: 347.00 mm SULZER 8ZAL 40S REPAIRS Machined new fillet …
Learn More Download Now

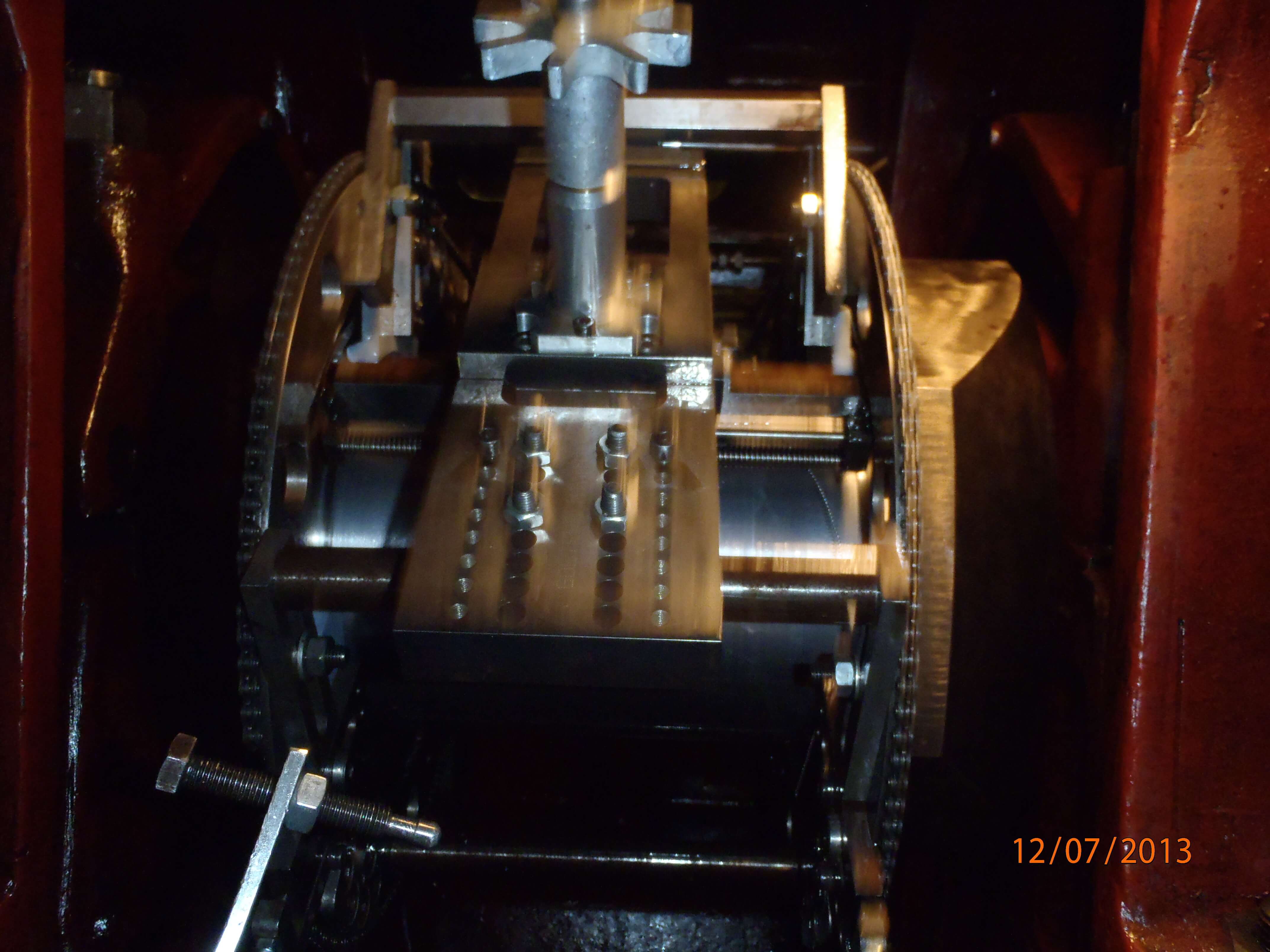

PROJECT FACTS MV QUEEN OF BURNABY Engine Type: Mirrlees National Engine Model: KVSS M16 V-Type Number of Journals: 8 Original Diameter: 266.70mm Finished Diameter: 265.18mm IN-PLACE MACHINING CONSISTED OF Performed Magnaflux crack test and hardness tests on all crankpins Performed …
Learn More Download Now

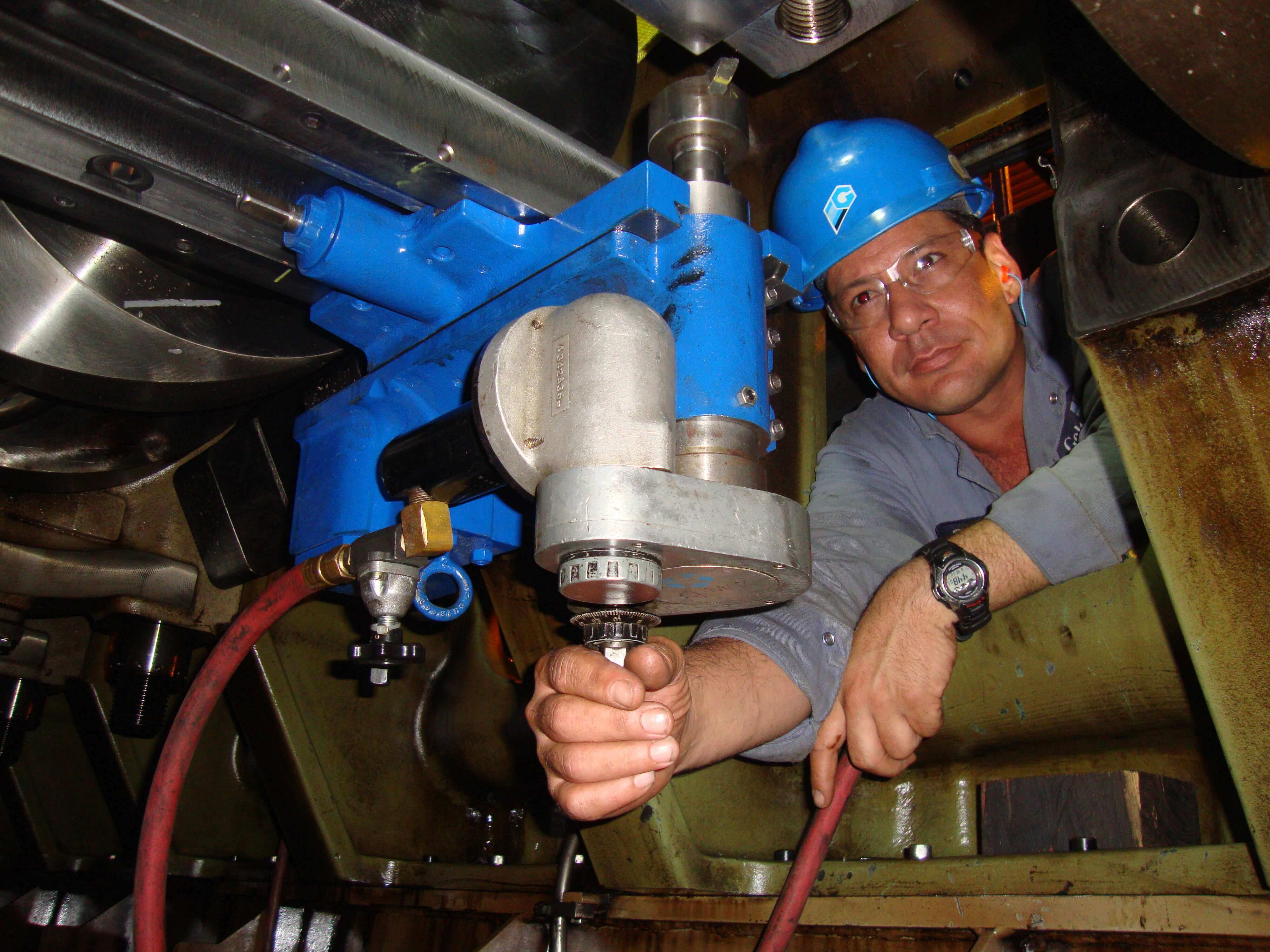

The vessel owners consulted the engine maker and presented the method for proposed repair. After consultation with the makers, the vessel owners were informed by the makers that this type of repair was “not possible In-situ”. Despite this adverse opinion, …
Learn More Download Now

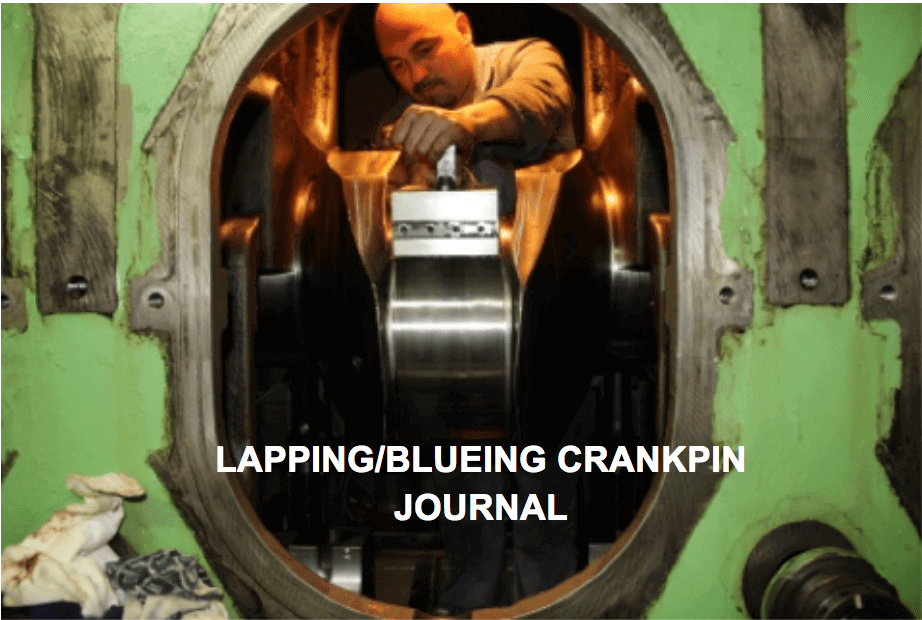

PROJECT FACTS Engine Make/Model: MAN B&W 9K80MC-S Engine Output: 41,670 kW (103 Rpm) Crankpin Dia. Pre machining: 896.00mm Crankpin Dia. Post machining: 891.00mm REPAIRS TO CRANKPINS Full NDT inspection (Magnaflux and Hardness) Machining of new fillet radii Machining of crankpin …
Learn More Download Now

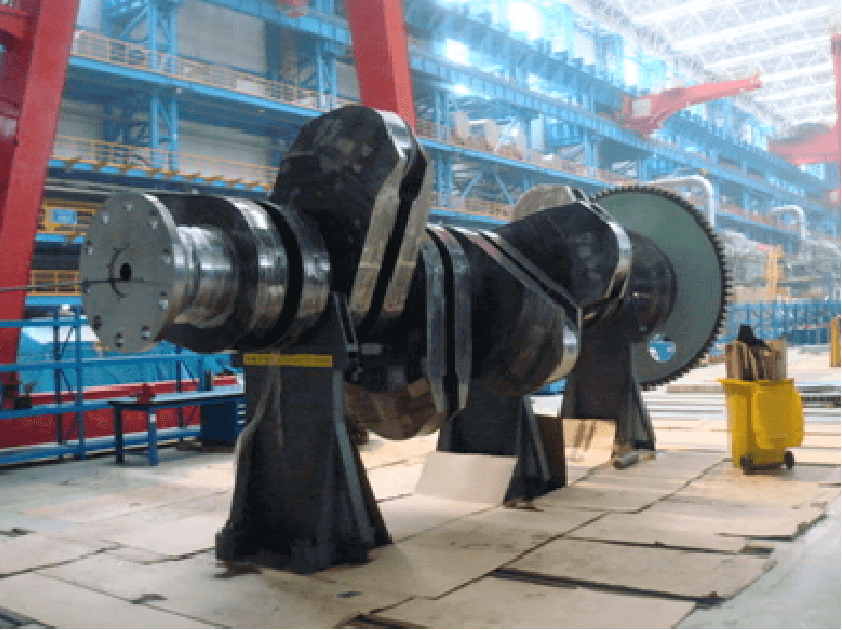

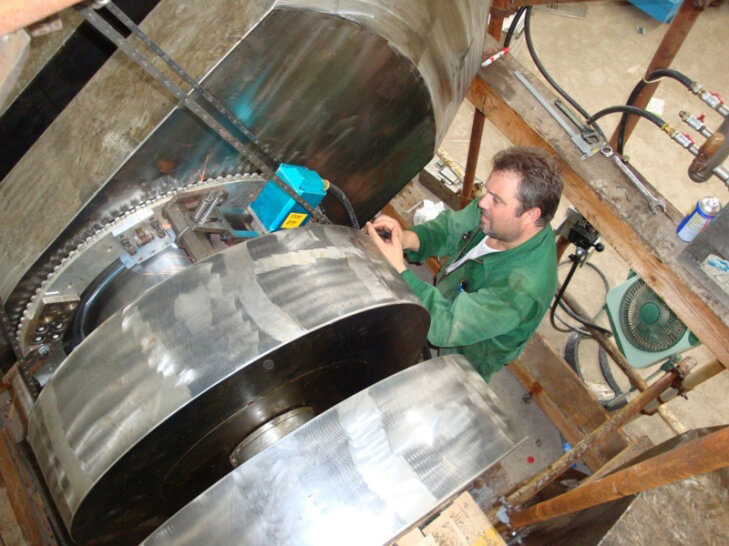

PROJECT FACTS Wartsila 6RT-FLEX 50B Weight: 55tons Crankshaft Length: 7560 mm Throw: 2850 mm Journal Diameter: 600 mm Crankpin Diameter: 600 mm REPAIRS Assessment of fillet radii (which are normally out of line due to the shaft manufacturing process) Grinding …
Learn More Download Now
PROJECT FACTS Wartsila 6RT-FLEX 50B Weight: 55 tons Crankshaft Length: 7560 mm Throw: 2850 mm Journal Diameter: 600 mm Crankpin Diameter: 600 mm REPAIRS Assessment of fillet radii (which were out of line due to the shaft manufacturing process) Machining …
Learn More Download Now
THE DECISION Goltens machined the crankshaft to -4mm and to evaluate the condition of the shaft. It was determined that the hard spots did not lessen – in fact, they became worse. All of the surface cracks were removed, with …
Learn More Download Now
The customer decided to cut another -2.00mm to see if the hard area would get smaller and the hardness values would get lower. At diameter 346.00mm the hardness values and area were still out of the engine maker’s specifications. Goltens …
Learn More Download Now

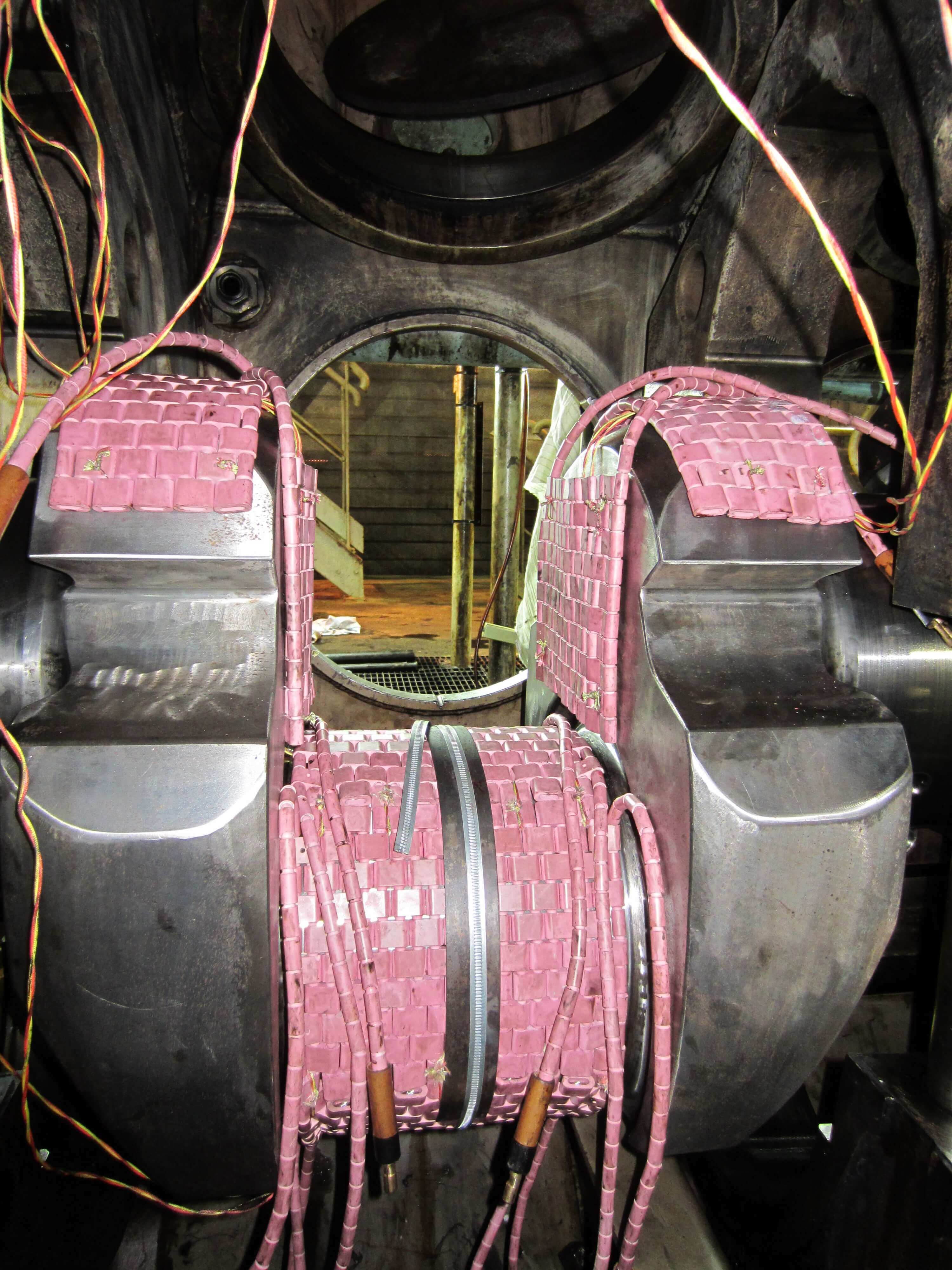

IN-SITU ANNEALING PROJECT FACTS Caribe Mariner Ship Type: Container Ship Engine Make: MaK 8M32 Engine Output Mcr: 3,380kW/4,595HP (600RPM) Crankpin Diameter (Original): 280.00 mm Crankpin Diameter (Finished): 278.00mm Max Hardness pre-Annealing: 650HB Max Hardness post-Annealing: 308HB CRANKSHAFT AND JOURNAL REPAIRS …
Learn More Download Now
PROJECT FACTS French Guyana Powerplant Engine Make/Model: Pielstick PC2.5 18V Crankpin Dia. Pre machining: 315mm Crankpin Dia. Post machining: 312mm Max Hardness before Annealing: 647hB Max Hardness after Annealing: 325hB REPAIRS Full NDT inspection (Magnaflux and Hardness) Machining of crankpin …
Learn More Download Now

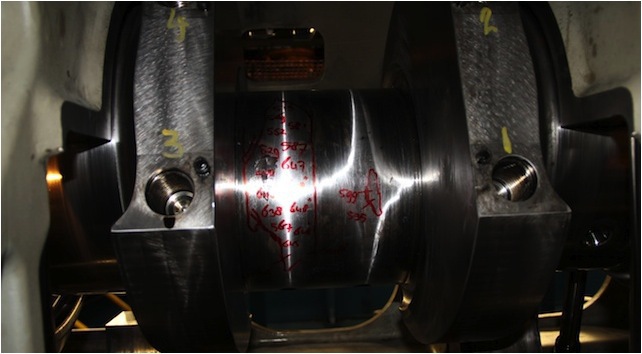

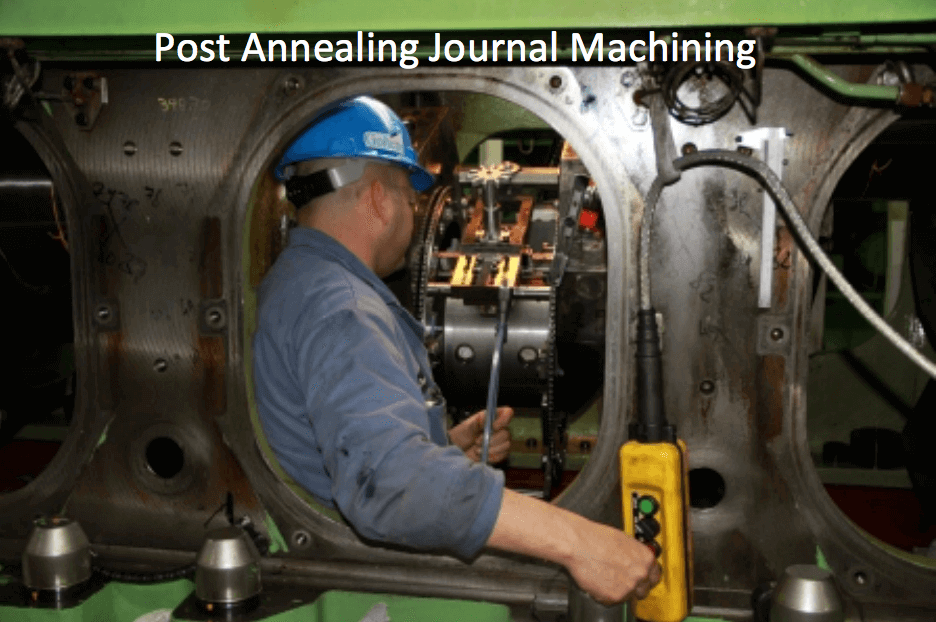

PROJECT FACTS Mexican Paper Mill Engine Make: Wartsila W18V32 Engine Output: 6,746 kW at 720 RPM Crankpin Diameter (Original): 310.00 mm Crankpin Diameter (Finished): 307.00mm Max Hardness pre-Annealing: 650HB REPAIRS Removed 1.50 mm from crankshaft prior to annealing Annealed the …
Learn More Download Now

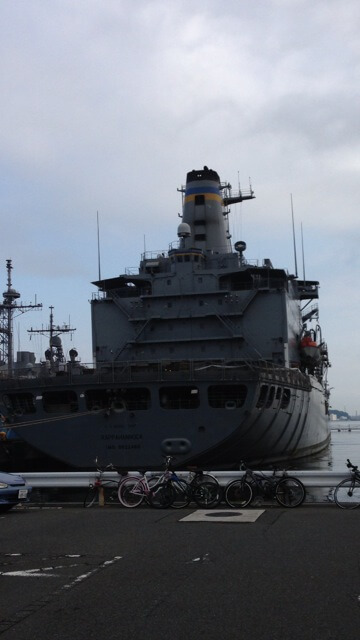

PROJECT FACTS PIELSTICK 10PC 4.2V Vessel type: Fleet Replenishment Oiler Orig. Crankpin Diameter: 465.00mm Material Removed: 2.00mm Post Annealing Hardness: <300 Hb PIELSTICK ANNEALING AND MACHINING PERFORMED Inspected the crankshaft – performing run-out, Magnaflux and hardness checks on the shaft …
Learn More Download Now

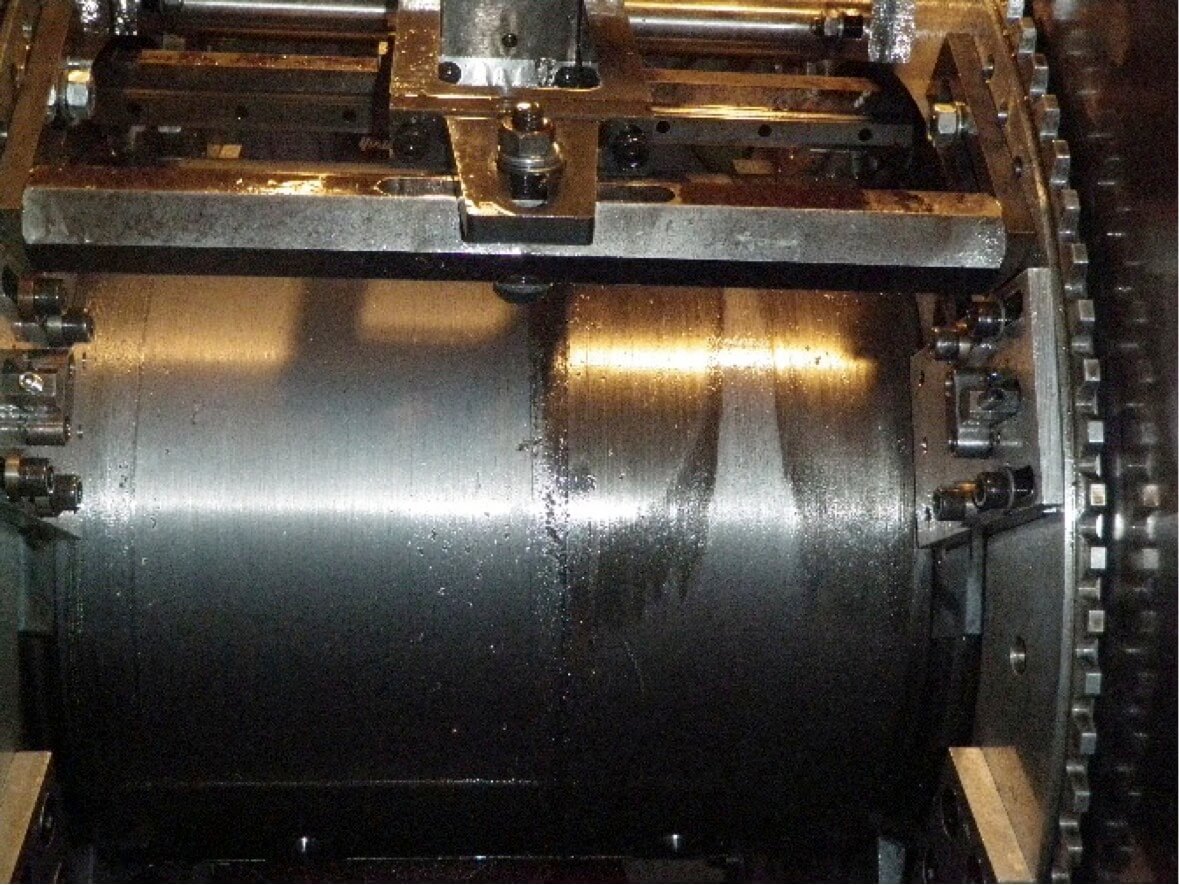

PROJECT FACTS WARTSILA 18V46 Location: Dominican Republic Power Output: 17,550 @ 500rpm Original Crankpin Diameter: 450.00mm Material Removed: 4.00mm Pre/Post Annealing Hardness: >600Hb/<350 Hb WARTSILA 18V46 ANNEALING AND MACHINING WORK PERFORMED Inspected the crankshaft – performing run-out, Magnaflux and hardness …
Learn More Download Now

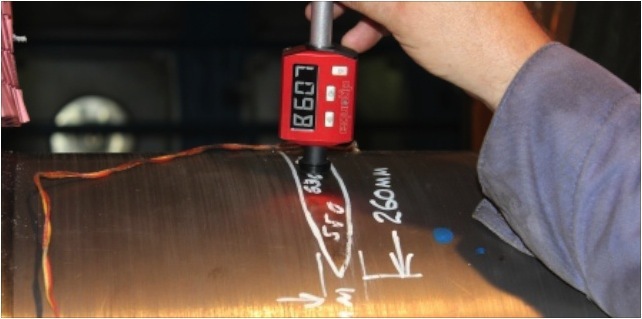

ANNEALING PROJECT FACTS Panamanian Power Plant Engine Make/Model: Wartsila W18V46 Engine Output: 10,000 HP Crankpin Dia. Pre machining: 450.00mm Crankpin Dia. Post machining: 447.00mm Distance between Webs: 450.00mm DIESEL GENERATOR REPAIRS Full NDT inspection (Magnaflux and Hardness) Machining of crankpin …
Learn More Download Now

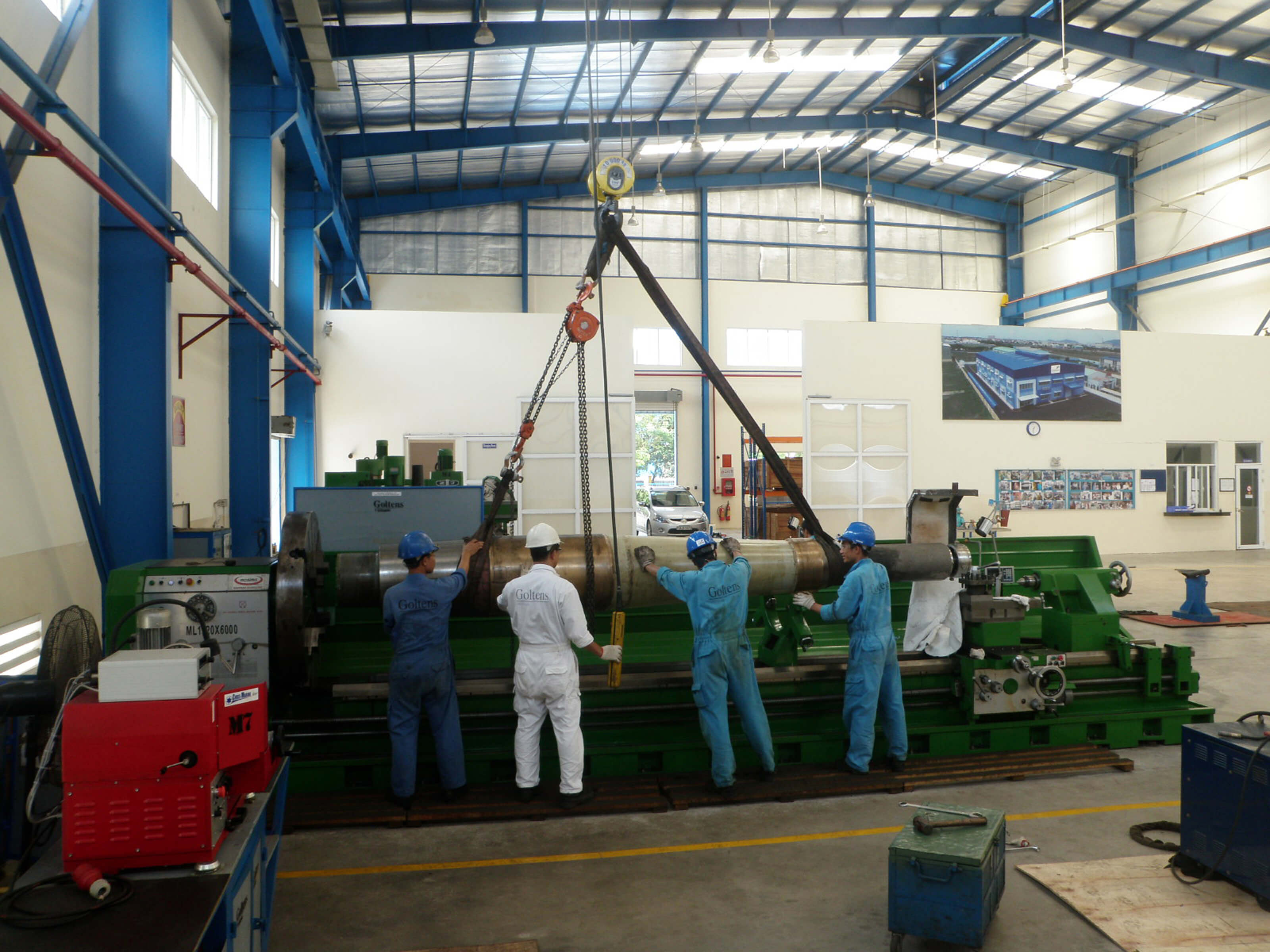

PROJECT FACTS BEN KIEN SHIPYARD Vessel: M/V 9200T-03 Rudder stock Length: 4.610m Rudder stock diameter: 300/400/545/350mm Rudder stock weight: 9500 kg Machined length of Shaft: 770mm WORKSHOP REPAIRS Rudder stock cleaned & measured (before & after repair) Completed alignment check …
Learn More Download Now
PROJECT FACTS FPSO KNOCK ADOON Tonnage: 244,492 DW Engine / Equipment: Siemens KKK AFA 6 G6a Turbine Output: 2.5 MW RPM: 11,543 RPM IN-SITU REPAIRS Removal, lifting of the whole skid weighing ~30 tons Manufacturing and installation of new steel …
Learn More Download Now
Goltens milled out the damaged area and completed post machining dye penetrant checks to ensure that 100% of the damage had been removed. Goltens fashioned a template of the damaged area and fabricated an insert that was machined to fit …
Learn More Download Now

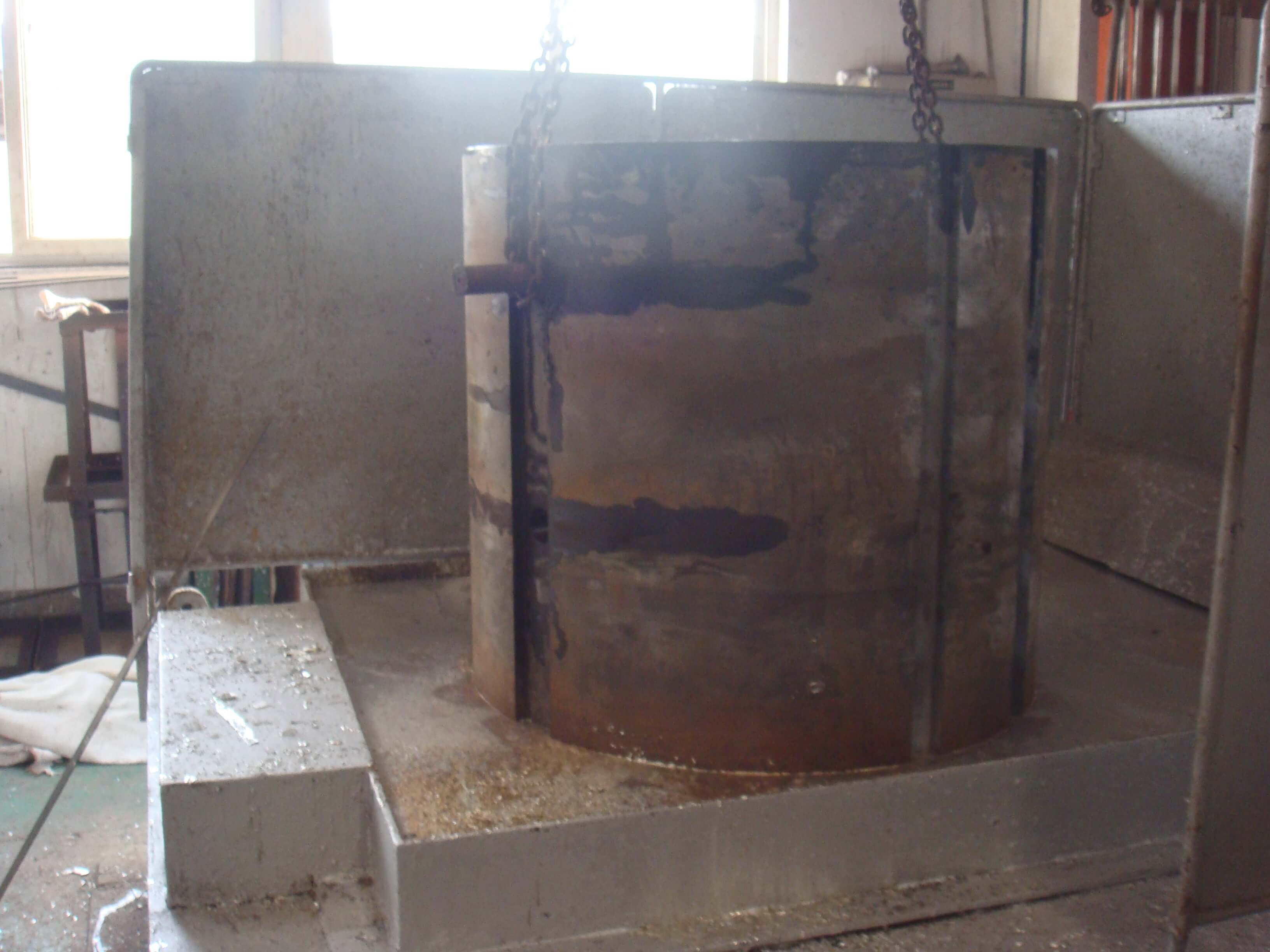

PROJECT FACTS STERN TUBE BEARINGS Tonnage: 298,555 DWT Shaft dimension: OD: 741.00mm × L: 1630.00mm Year Built: 2003 BEARING REMETALLING AND MACHINING REPAIRS Inspection of aft and forward stern tube bearings after removal old damaged white metal bearing material STERN …
Learn More Download Now
PROJECT FACTS Engine: Pielstick 2.3 Engine Output: 6,485kW RPM: 514 RPM Original Shaft Diameter: 203.20 mm Length of machined journal: 610.00 mm Shaft Dia. Pre-sleeving: 179.60mm REPAIRS Magnaflux and hardness inspection of the shaft Machining of generator shaft to 179.60 …
Learn More Download Now
PROJECT FACTS Engine: SULZER 16ZAV40S Pocket Diameter (Pre-machining): 480 mm Pocket Diameter (Post-machining): 490 mm Pockets Machined: 11 of 16 REPAIRS Dismantling of cylinder head, piston and connecting rod, cylinder liner and accessories to provide access for In-Situ Line Boring …
Learn More Download Now
PROJECT FACTS PIELSTICK 18PC4.2V Engine Output: 21,517KW Crankpin Length: 342.00mm Original Crankpin Diameter: >465.00mm Finished Crankpin Diameter: 464.50mm REPAIRS Magnaflux and Hardness checks on crankshafts Run out and ovality checks Machining of 0.5 mm off Crankpin #6 Machine polishing of …
