3D laser scanning and space survey onboard bulk carrier

Severn Trent De Nora Balpure system

Goltens Green Technologies was approached by the owner of a 90,000 DWT Bulk Carrier to perform a 3D Laser scan and space study onboard. The owner needed to resolve open questions about the proper location of the various components of the selected Balpure ballast water treatment system from Severn Trent De Nora.

Goltens technicians boarded the vessel and performed extensive scans of the vessel’s engineering spaces in order to provide the customer with a variety of options for the ideal placement of the system. The results of the scan were then analyzed and overlays of the system components completed to find proper placement as well as identify required modifications to piping and cabling as well as any required relocation of equipment.

  • 2nd Deck of engine room scanned for placement of STDN filter

    2nd Deck of engine room scanned for placement of STDN filter

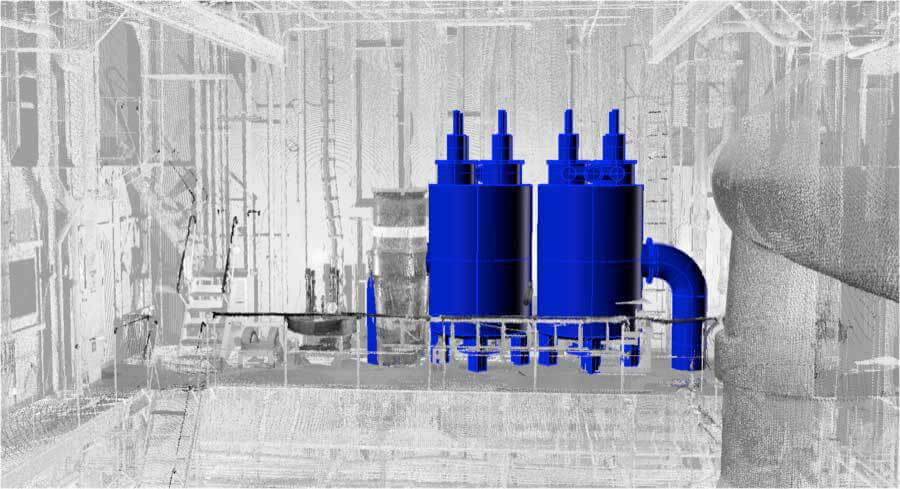

  • STDN filters shown on 3D scan results of previous slide

    STDN filters shown on 3D scan results of previous slide

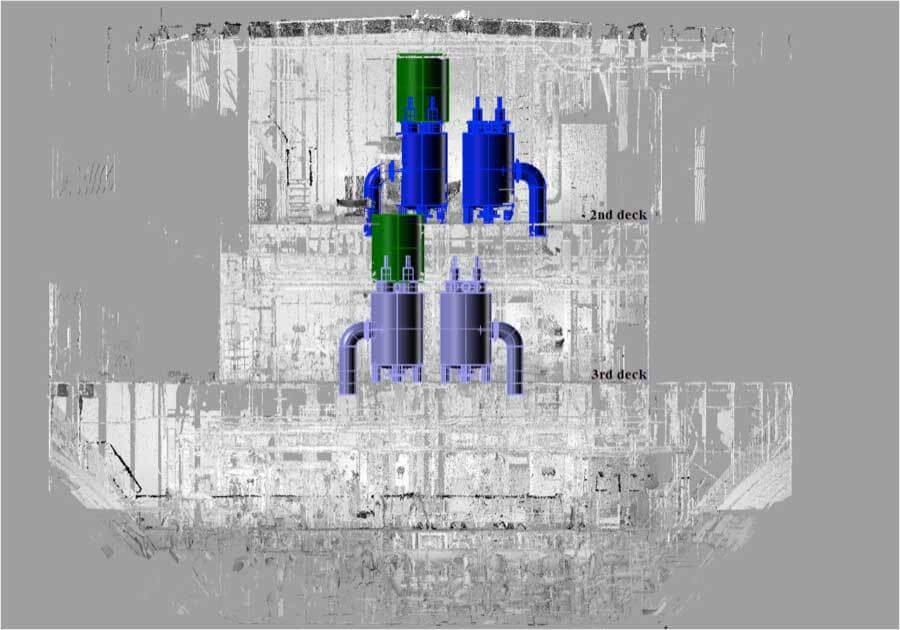

  • Overlay of STDN filters showing Option 1 and 2 placements on 2nd and 3rd decks

    Overlay of STDN filters showing Option 1 and 2 placements on 2nd and 3rd decks

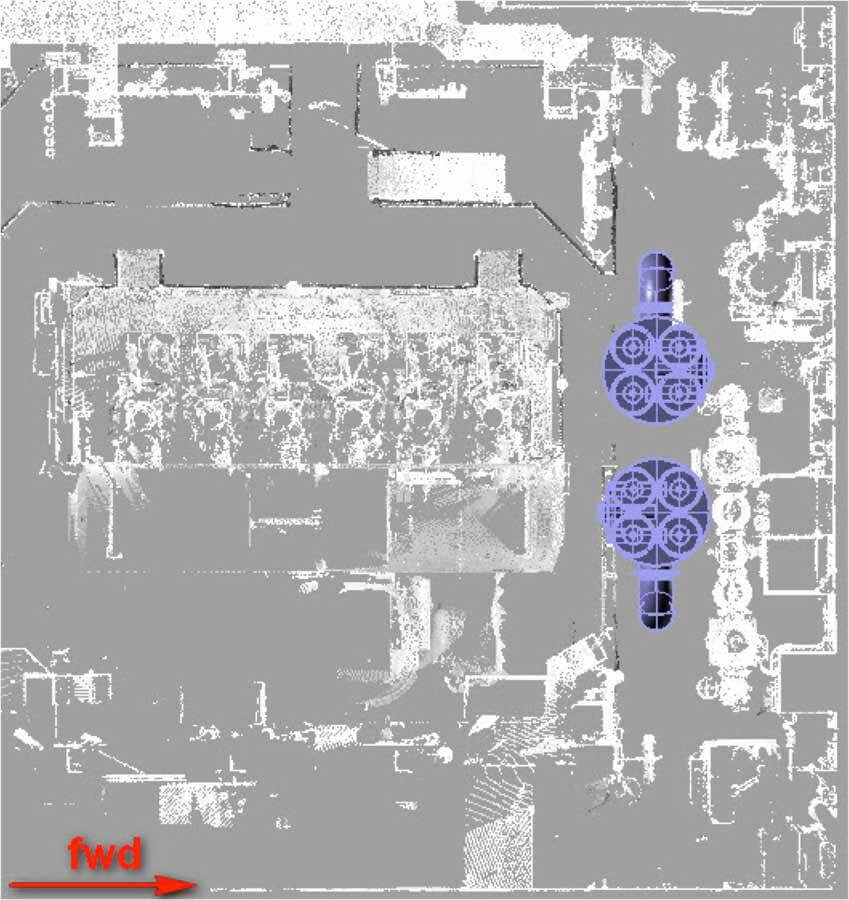

  • Overhead view of filter location with option 1 on 2nd deck

    Overhead view of filter location with option 1 on 2nd deck

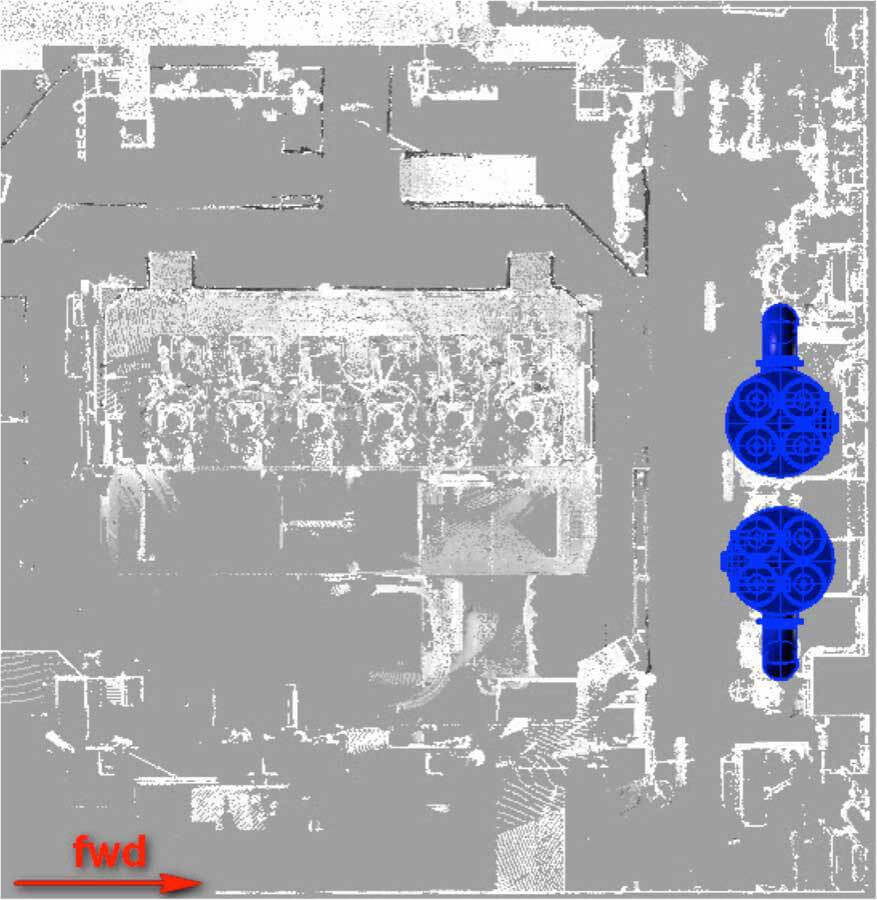

  • Overhead view of filter location with option 2 on 3rd deck

    Overhead view of filter location with option 2 on 3rd deck

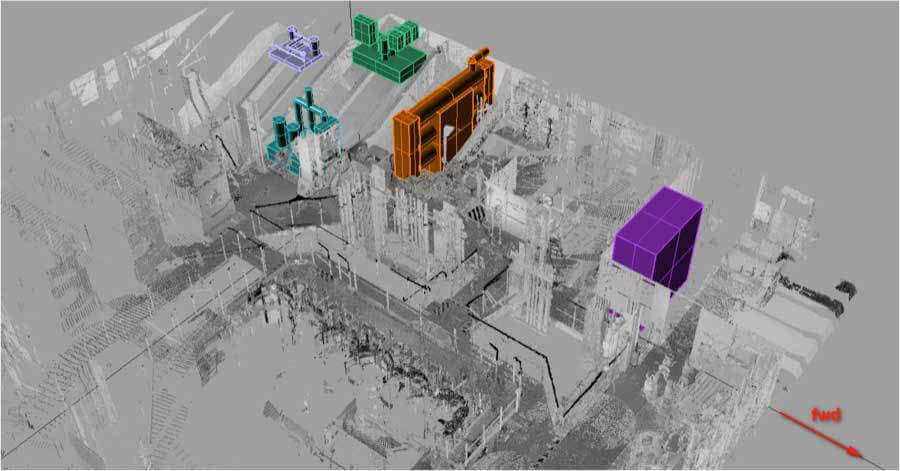

  • Proposed location of the neutralization dosing and the injection control panel pump in the engine room

    Proposed location of the neutralization dosing and the injection control panel pump in the engine room

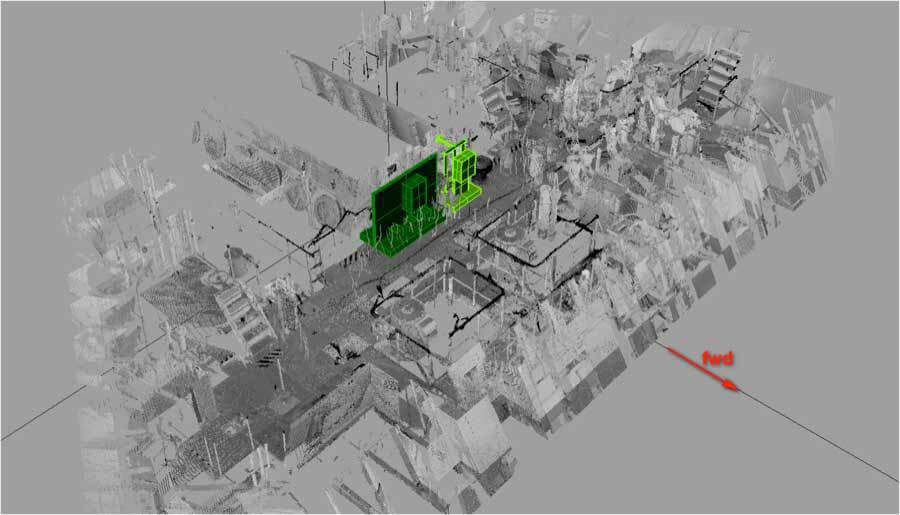

  • Proposed location for additional components of the STDN Balpure system on the 3rd deck level

    Proposed location for additional components of the STDN Balpure system on the 3rd deck level

BALLAST WATER TREATMENT RETROFIT WORK CONSISTED OF

  • 3-D Scanning and Modeling
  • Space Study detailing:
    • System placement options Filter recommendations (horizontal vs. vertical)
    • Required piping relocations
    • Switchboard modifications
    • Required cable rerouting
    • Routing for equipment transit to installation location

PROJECT FACTS

BULK CARRIER BWT
Vessel type: Bulk Carrier
Ballast flowrate: 2 x 2500m3/hr
Ballast treatment system: STDN Balpure

RESULTS

The scan and space study revealed that it would be possible to install this 5000 m3/hr STDN system onboard the bulk carrier or one of her sister ships. Goltens determined that a suitable location could be found for all components of the STDN system without the requirement for relocation of too much equipment.
