Oil Filter / Paint Bucket Compactors

Combined compactor for used oil filters and volume reducer for paint buckets.

A powerful hydraulic compactor that completely empties the oil filters. The extracted waste oil from the filter is drained into a separate tank or barrel and delivered onshore.

Oil Filter / Paint Bucket Compactors

Delitek is represented by the following Goltens stations: Goltens Singapore Pte. Ltd., Goltens Vietnam, Goltens Korea, Goltens Philippines Branch Office

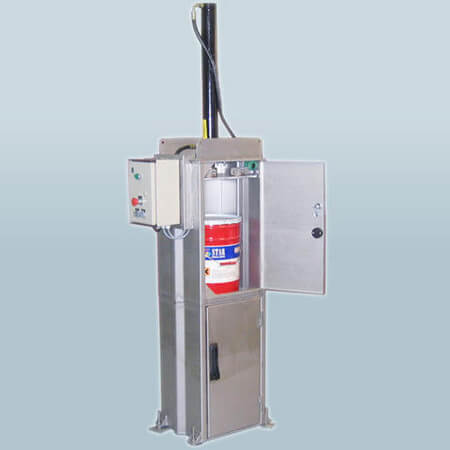

DT-120C Oil-filter & bucket crusher

The DT-120C Oil-filter & bucket crusher is manufactured in stainless steel and specially suited for use within marine environments. (i.e. vessels and offshore installations)

The DT-120C is a powerful oil-filter crusher that drains oil residues from used oil-filters completely. The oil that is extracted from the oil-filters is drained directly into a separate tank or barrel. Such oil-filters can thereafter be delivered onshore as ordinary metal or scrap iron. The DT120C is also perfectly suited for crushing paint buckets, cans and smaller types of drums.

Technical Specifications

Material: Stainless steel AISI 304 or AISI 316
Loading opening: 300x600mm
Press force: 9 tons
Dimensions: (WxDxH) 712x393x2313mm
Weight: 100 Kg
Motor voltage: 220V / 380~440V, 3Ph, 50~60Hz
Motor power: <1,8 KW
Alternative power supply: Pneumatic/Hydraulic or Pneumatic only
Noise level: <65dB

DT-550DC Drum crusher

The DT-550DC Drum crusher is manufactured in stainless steel and specially suited for use within marine environments. i.e. vessels and offshore installations.

The DT-550DC is a specially designed drum crusher that will completely drain liquid residue from used 30 to 55-gallon drums. This is possible due to the piercing plugs under the crusher press-plate, perforating the drum. The liquid that is extracted is drained directly into an integrated oil-reservoir in the bottom of the crusher. This means that used oil-drums can be delivered onshore as ordinary metal or scrap iron. The DT-550DC is a closed crusher system so operators will avoid any direct contact or exposure to chemicals.

Technical Specifications

Material: Stainless steel AISI 304 or AISI 316
Capacity: Max 55 gallon drum
Press force: 20 tons
Dimensions: (W x D x H) 1293mm x 833mm x 2700mm
Weight: 630 Kg
Motor voltage: 220V / 380~440V, 3Ph, 50~60Hz
Motor power: 3 KW
Alternative power supply: Pneumatic/Hydraulic
Noise level: <65dB
