Bale Compactors

High capacity bale compactors for waste from packaging such as paper, carton (cardboard) and PVC materials.

The Bale compactors share the same robust design as the other Delitek compactors. They are not limited to be placed indoors as they are designed to be placed outdoors. This is necessary especially if they are used in a corrosion aggressive environment such as in the fish-industry or onboard a vessel and other marine environments. These compactors have large capacity press chambers combined with a large loading hatch, which make it easy to deploy waste

Bale Compactors

Delitek is represented by the following Goltens stations: Goltens Singapore Pte. Ltd., Goltens Vietnam, Goltens Korea, Goltens Philippines Branch Office

DT-1000B Bale Compactor

The DT-1000B Baler is manufactured in stainless steel and specially suited for use within marine environments. i.e. vessels and offshore installations.

The DT-1000B is a strong and reliable baler commonly used for volume reduction and strapping of recyclable waste fractions such as PVC materials, paper & cardboard etc. The baler has a large front loading hatch which eliminates time-consuming pre-cutting of large cardboard pieces.

Technical Specifications

Material: Stainless steel AISI 304 or AISI 316
Capacity: 1,5 m3
Loading hatch dimensions: (WxH) 942x537mm
Dimensions: (WxDxH) 1275x929x2485mm
Weight: 350 Kg
Motor voltage: 220V / 380~440V, 3Ph, 50~60Hz
Motor power: <1,8 KW
Noise level: <65dB

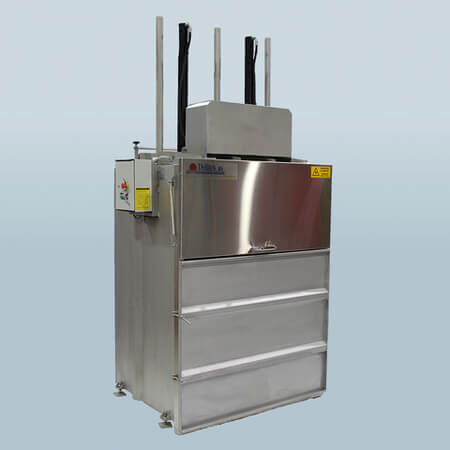

DT-1500B Bale Compactor

The DT-1500B Baler is manufactured in stainless steel and specially suited for use within marine environments. i.e. vessels and offshore installations.

The DT-1500B is a heavy-duty baler commonly used for volume reduction and strapping of recyclable waste fractions such as PVC materials, paper & cardboard etc. directly onto a standard EUR pallet. The baler has a large front loading hatch which eliminates time-consuming pre-cutting of large cardboard pieces.

Technical Specifications

Material: Stainless steel AISI 304 or AISI 316
Capacity: 2,5 m3
Loading hatch dimensions: (W x H) 1240mm x 605mm
Dimensions: (W x D x H) 1552mm x 1175mm x 2837mm
Weight: 475 Kg
Motor voltage: 220V / 380~440V, 3Ph, 50~60Hz
Motor power: <1,8 KW
Noise level: <65dB
