X-Y Milling of Radar Dome Pedestal Foundations

Fast Response And A Precise Job For Norwegian Naval Destroyer

A Norwegian shipyard contacted Goltens to take over a pressing job that another company had committed to but could not complete. The job was to machine four pedestal foundations for radar domes on a naval destroyer.

The foundations, as constructed, were too rough and uneven to mount the domes. Goltens quickly evaluated the technical requirements and immediately mobilized two in-situ machining technicians and its X-Y milling machinery to the shipyard to start the work.

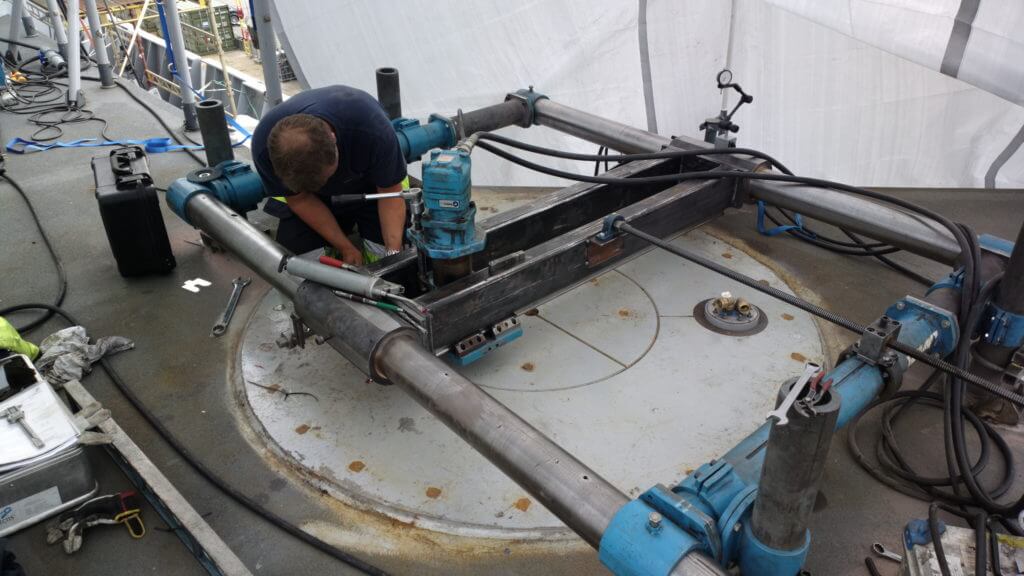

  • Goltens In-Situ Machinist aligning X-Y milling machinery

    Goltens In-Situ Machinist aligning X-Y milling machinery

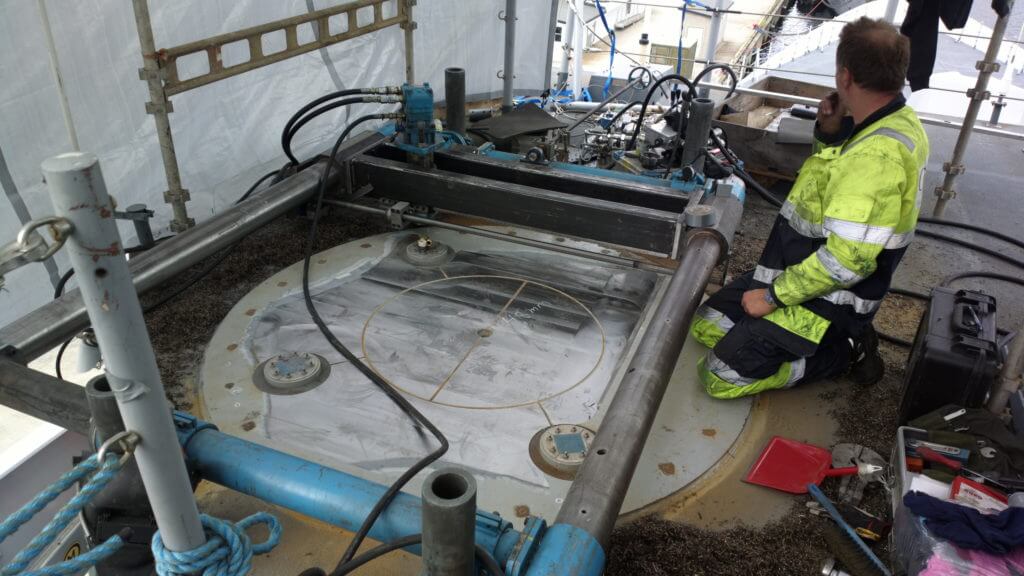

  • X-Y Milling in progress by Goltens In-place machinists

    X-Y Milling in progress

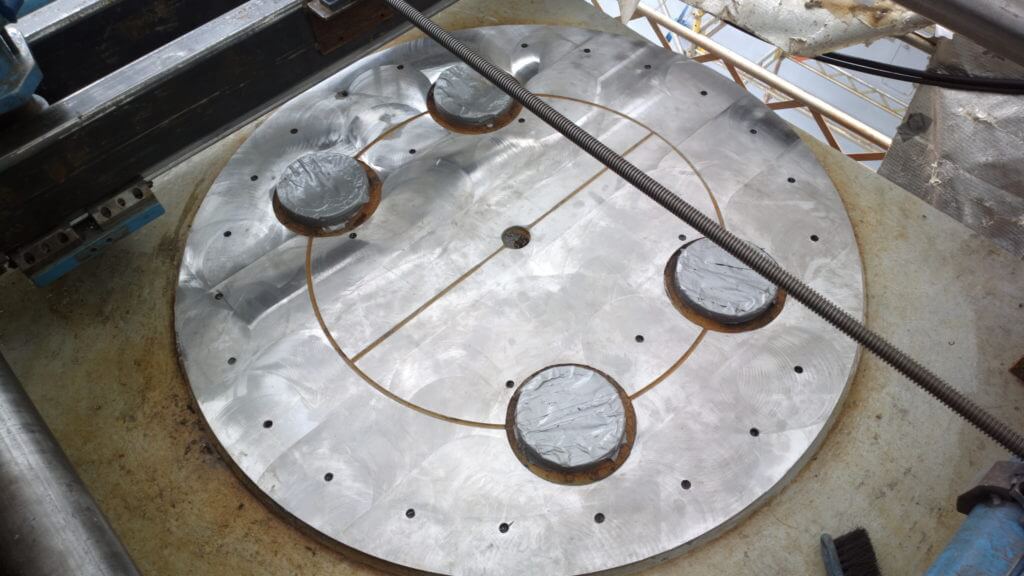

  • Completed pedestal foundation after machining by Goltens

    Completed pedestal foundation


Pedestal Diameter: 1 x 2,000mm/3 x 1,200mm
Material removed: Max 28mm
Machining Tolerance: 0.5mm per 1,000mm


  • X-Y milling of 3 radar dome pedestal foundations measuring 1,200mm
  • X-Y milling of 1 radar dome pedestal foundation measuring 2,000mm in diameter
  • Tolerance of 0.5mm per 1,000mm.


Goltens technicians completed the X-Y milling job within three days to the full satisfaction of the shipyard and the Navy.

As a result of the job, Goltens was awarded the order for the work on a sister ship with the possibility of a working on a third.
