In-Situ machining of propeller hub

In-Situ machining avoids costly shop repair and extended docking

Goltens was contacted to evaluate damage observed on a drydocked vessel during a yearly propeller survey at CSIC shipyard. Goltens was engaged and performed a visual evaluation of the hub followed by dye penetrant checks to determine if there were cracks on the hub as well as the wear and scraping observed.

Inspection revealed that the hub did require reconditioning and Goltens proposed that the repair be done in-situ to avoid the cost and time associated with disassembly and reassembly of the propeller as well as avoided transport costs and extended docking time.

Goltens mobilized its tools and technicians and worked around the clock to complete the repair.

  • Scaffolding installation within the dock yard

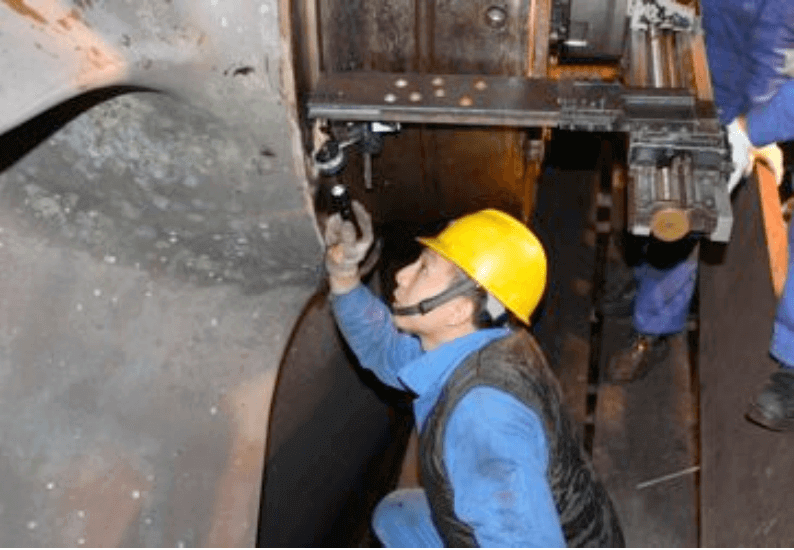

  • Inspection of machining equipment prior to machining

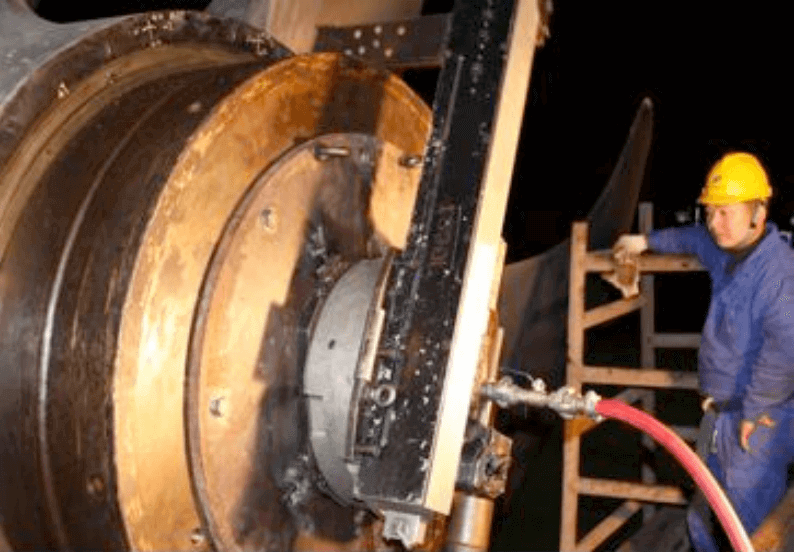

  • Flange facing of propeller hub

PROJECT FACTS

PROPELLER HUB
Vessel: M/V XIN YA ZHOU
Engine: MAN B&W 12K98MC-C
Tonnage: 102,396 DWT
Hub Outside Diameter: 1600.00mm
Hub Inside Diameter: 1393.00mm

REPAIRS

  • Dye penetrant checking for cracks on propeller hub

    RESULTS

    Goltens technicians completed this job within 2 days with 2 shifts working around the clock to keep up with vessel’s drydock schedule. Goltens saved the extra dry-dock time and cost for the ship owner, which would have been needed to pull the propeller and machine the hub in the workshop.
