Glass Crushers

For passenger vessels, accommodation installations & onboard waste management stations

The output after crushing is small fragments of crushed glass that can be directly recycled or for example used as drainage fillings. The waste is collected in the container in a “Big bag”. The “big bag” is easily removed and deployed by rolling out the container and lift the bag out.

Glass Crushers

DT-200GC Glass Crusher

The DT-200GC is especially suited for crushing glass bottles, jars and similar glass materials. It is delivered with a wheeled C-200 container with 0,2m3 capacity & big bag solution. The outcome from the DT-200GC is small fragments of crushed glass, which is collected inside the belonging C-200 container.

Technical Specifications

Material: Stainless steel AISI 304, AISI 316 or painted steel
Capacity: 0,2 m3
Feeding tube: Ø 162mm
Dimensions: (WxDxH) 765 x 1020 x 1720mm
Weight: 210 Kg
Motor voltage: 220V / 380~440V, 3Ph, 50~60Hz
Motor power: <1,8 kW
Noise level: <65dB

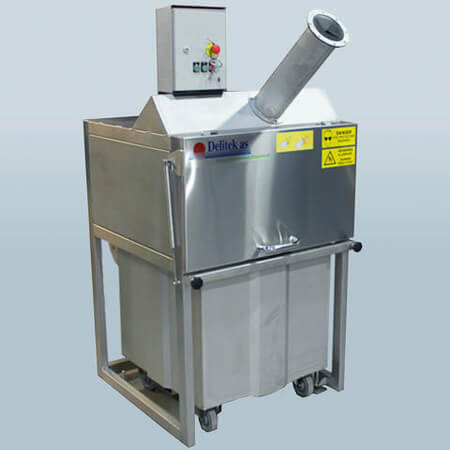

DT-500GC Glass Crusher

The DT-500GC is specially designed for crushing glass bottles, jars and similar glass materials. It is delivered with a wheeled C-500 container with 0,5m3 capacity & big bag solution. The outcome from the DT-500GC is small fragments of crushed glass, which is collected inside the belonging C-500 container.

Technical Specifications

Material: Stainless steel AISI 304 or AISI 316
Capacity: 0,5 m3
Feeding tube: Ø 162mm
Dimensions: (WxDxH) 975 x 1208 x 1815mm
Weight: 240 Kg
Motor voltage: 220V / 380~440V, 3Ph, 50~60Hz
Motor power: <1,8 kW
Noise level: <65dB

DT-190LCG Glass Crusher

The DT-190LCG is especially suited for crushing glass bottles, jars and similar glass materials. It is delivered with a 190 Liter wheelie bin. The outcome from the DT-190LCG is small fragments of crushed glass, which are collected inside the wheelie bin.

Technical Specifications

Material: Stainless steel AISI 304 or AISI 316
Capacity: 190 Litre
Feeding tube: Ø 162mm
Dimensions: (WxDxH) 765 x 1020 x 2010mm
Weight: 185 Kg
Motor voltage: 220V / 380~440V, 3Ph, 50~60Hz
Motor power: <1,8kW
Noise level: <65dB
